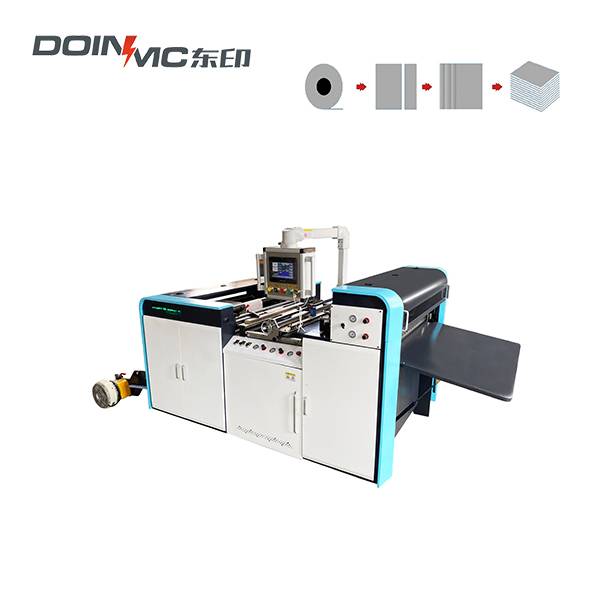

DOINMC most basic sheeter model. It is suitable for small size paper sheeting.
| Model | RS-K1100-Basic, RS-K1300-Basic, RS-K1600-Basic, RS-K800-Basic |
|---|---|
| Max. Cutting Width | 1100mm, 1300mm, 1600mm, 800mm |
| Max. Unwind Diameter | 1200mm |
| Paper Thickness | 28-400gsm |
| Cutting Length Range | 50-600mm |
| Max. Piling Height | 420mm |
| Total Weight | 2000-4500kgs |
| Machine Size | 3800*1270-2070*1800mm |
This automatic sheeting machine is suitable for all kinds of paper, self-adhesive, gold and silver cardboard, color printing compound, PVC, and other materials. It is RS-K economy type. The servo motor is used for feeding, which increases the cutting precision much than step motor control. PLC touch screen control. The paper is directly stacked after cutting. One worker collects the sheets manually. It is the basic model of the RS-K series, which is easy to change sheeting work in a short time.
