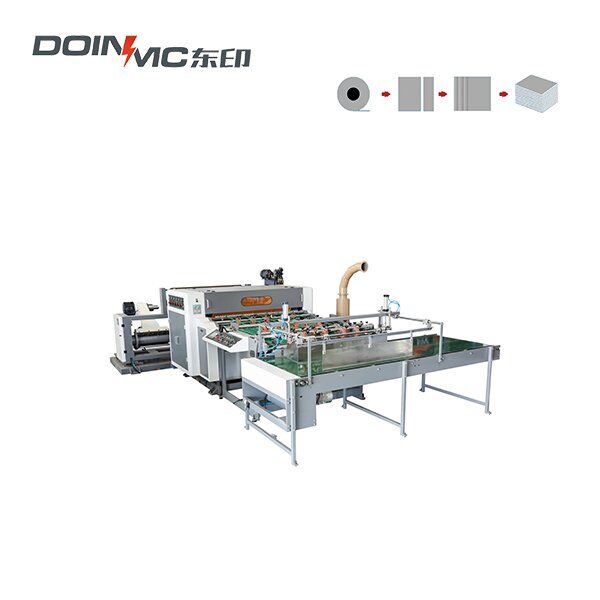

This machine is mainly desgin for those single-faced corrugated kraft paper roll cross cutting. The cutting method adopts single rotary blade sheeting, which makes single sheet rotary cutting speed reach 300cuts/min.
| Model | RS-D 1400-corrugated, RS-D 1700-corrugated |
|---|---|
| Max. Unwind Width | 1400mm, 1700mm |
| Cutting Method | lower blade fixed, upper blade rotary cutting |

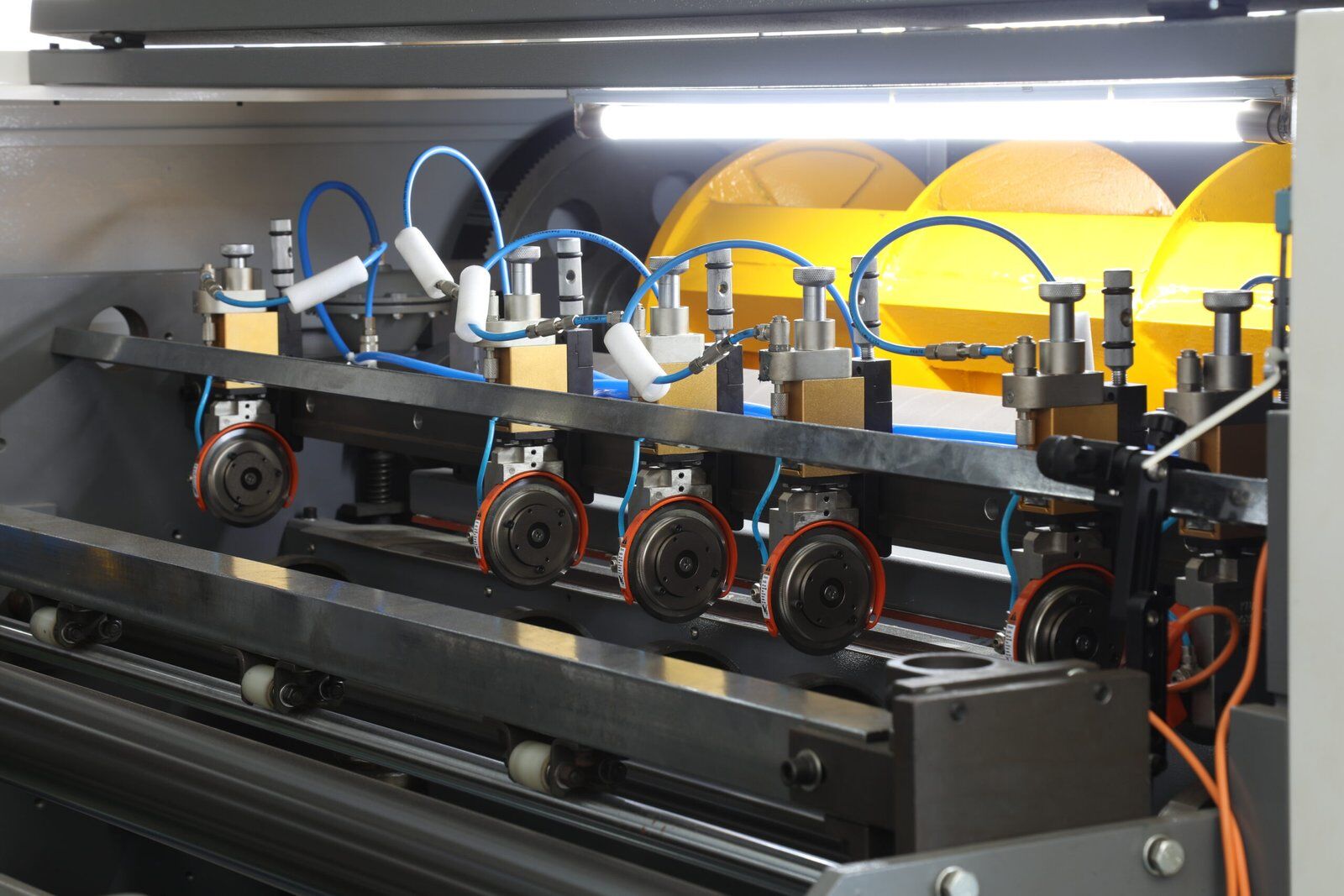

| Slitting Blade | 5pcs |
| Paper Thickness | 50-550gsm, single-faced corrugated paper |
| Air Request | 0.8Mpa |
| Machine Size | 7500x4500x1500mm |
| Total Weight | 9-11ton |
This machine is mainly desgin for those single-faced corrugated kraft paper roll cross cutting. The cutting method adopts single rotary blade sheeting, which makes single sheet rotary cutting speed reach 300cuts/min. For multi-sheets cutting, the maximum speed could reach 180cuts/min.

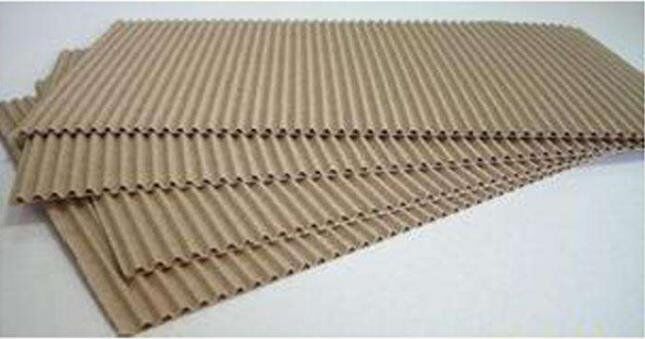

The cross cut corrugaed sheets could widely used in school handmade paper, pizza pad paper, and carton inner packing paper…cutting.
During long-term working with clients, we developing this model to meets the market requests, and clients’ needs.
