Model | RS-D1400-2ROLL, RS-D1700-2ROLL, RS-D1900-2ROLL |
---|---|
Max. Unwind Width | 1400mm, 1700mm, 1900mm |
Max. Unwind Diameter | 1500mm |
Slitting Blade | 3PCS |
Cutting Length Range | 450-1450mm |
Max. Piling Height | 1500mm |
Max. Cutting Speed | 350-400cuts/min |
Total Weight | 11-15ton |
Machine Size | 12000*4300-4800*1900mm |

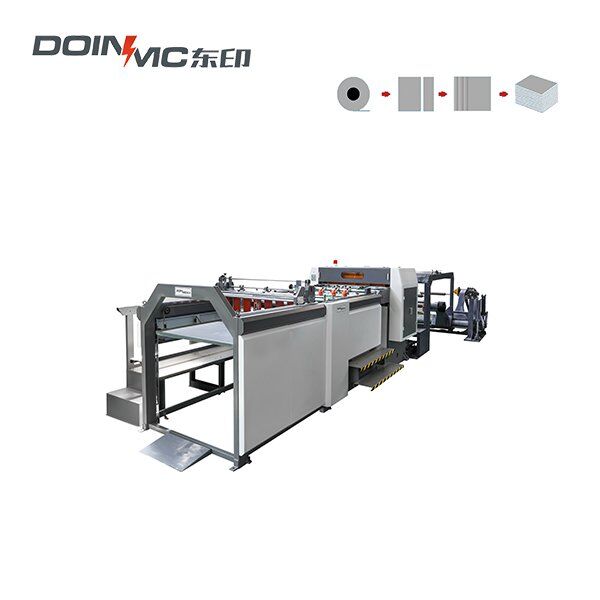

The servo-driven web computer crosscutting machine is a double roll feeding machine, which can increase the cutting efficiency and is the mainstream model in the market. It is suitable for horizontal and vertical cutting of roll materials such as white cardboard, grey cardboard, kraft paper, and copperplate paper. The cutting mode is the method of fixing the lower knife and cutting back the upper knife. It adopts FAG and tungsten steel cutter imported from Germany, which makes the paper cutting faster, more stable, and more accurate. It is easy to operate with touch-screen computer interface control. Optional printing mark tracking and cutting device.
