Paper core cutting machine is auxiliary machine that client alwasy purchase with slitting machine, sheeting machine, paper core making machine, and other packing machines.
DOINMC offer paper tube cutter from semi-automatic to fully automatic.
When you pick up a paper slitting and rewinding machine, but also need a paper core cutter, please feel free to pick up one here.
DC 1500, DC 2000, DC 600
For this machine, you need check the paper tube/paper sleeve/paper core/paper core making size you are going to cut at your hand.
Please check paper sleeve orignal length.
The machine applies to cutting off paper-sleeve cores whose inside diameter is 76mm(3″)with various thicknesses.
The machine is easy to load and unload, and simple to operate, and its incision is regular.

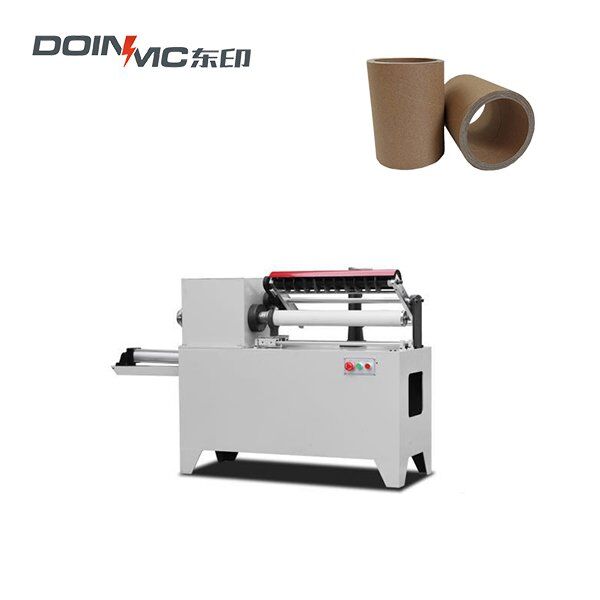

Model DC 600
Max. cutting width 600mm
Min. cutting width 12mm
Core inner dia. 76.2mm
Core thickness 3-10mm
Voltage request 220V/380V
Air request 5kgs/cm2
Machine power 1.5kw
Machine weight 500kgs
Machine size 1520*600*960mm
Note: Optional shaft size 2″ 6″.
It adopts PLC control system and touch screen display, all the working parameters can be preset and displayed on the monitor. It adopts servo motor control the round knife from Japan, high precision. Each Edge Cutting time only 0.5 seconds. It’s an ideal machine for thick paper core cutting.

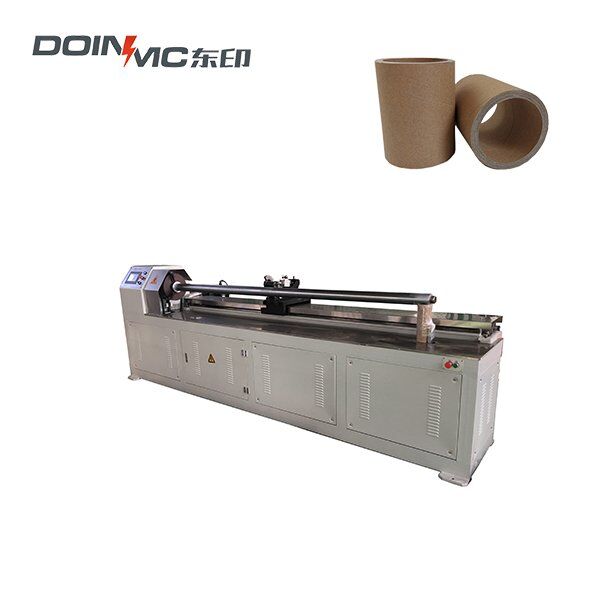

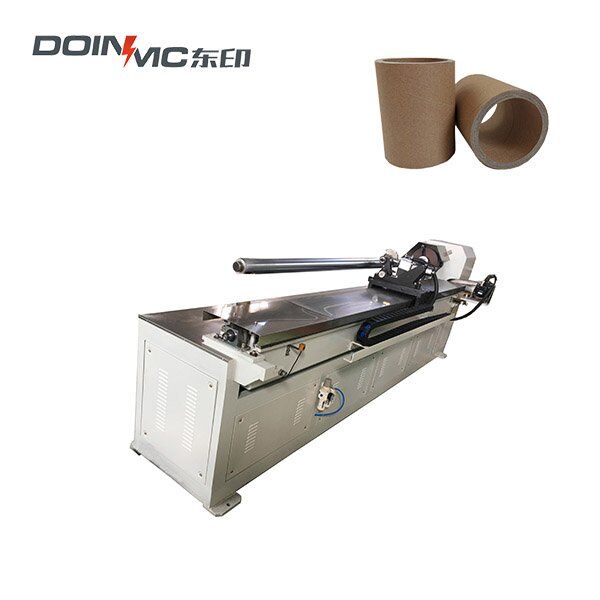

Model DC 1500
Cutting length 10-1500mm
Cutter moving speed 300mm/second
Core dia. 25-200mm
Core thickness 5-18mm
Voltage request 380V or customized
Air request 0.4-0.6Mpa
Machine power 5kw
Machine weight 1000kgs
Machine size 3000*1100*1370mm

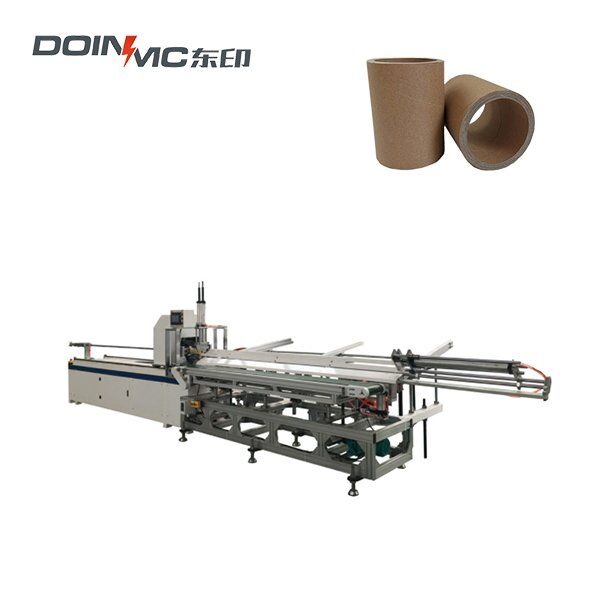

Jumbo Tube length 2000mm
Paper Tube Inner Dia 50-152mm
Paper Tube Thickness 4-15mm
Cutting Length 10-2000mm
Cutting Speed 60 cuts/min
Turret Movement Speed 1.8 m/min
Working Pressure 0.6Mpa
Cutting Mode Paper tube turn; knives and axes do not turn
Operator 1 person
Mould 2 sets
Uploading/Unloading Hand control
Dimension Main Body: 3300mm*1000mm*2100mm
Core Feeder: 3000mm*900mm*1200mm
