• 1100/1300/1600mm unwind width
  • more short, more economy
  • hydraulic shaftless loading stand (optional)

Additional information

Model

RS-K1100-Economy, RS-K1300-Economy, RS-K1600-Economy

Max. Unwind Width

1100mm, 1300mm, 1600mm

Max. Unwind Diameter

1500mm

Cutting Length Range

450-1200mm

Max. Cutting Speed

160cuts/min

Max. Piling Height

1300mm

Total Weight

4500kgs, 5500kgs, 6000kgs

Machine Size

5200*1770*1800mm, 5200*2070*1800mm, 5200*2500*1800mm

Clear

Machine Video

Product Details:

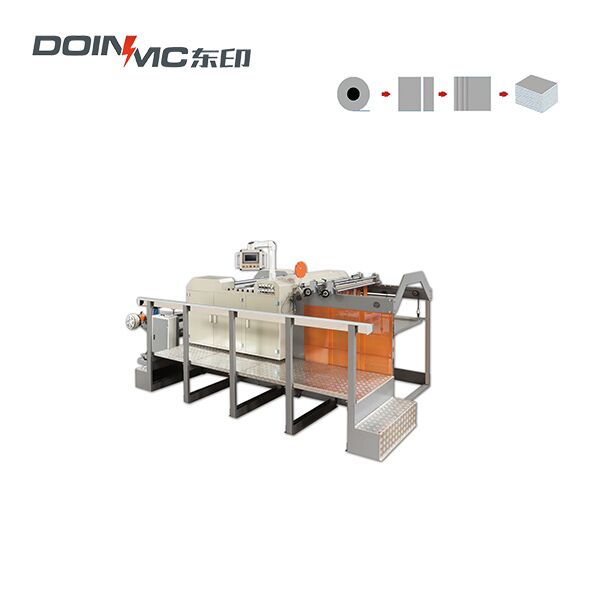

The machine is suitable for all kinds of paper, such as self-adhesive, gold and silver cardboard, color printing compound, PVC, and other materials. The servo motor is used for feeding, and the cutting accuracy is higher. PLC touch screen control. The paper directly piled on the auto stacking device after cutting. Optional: hydraulic shaftless automatic loading stand and convey belt sheet pressing delivery unit. The utility model has the advantages of simple operation, convenient maintenance, and small size. It is widely praised by small paper processing plants, whose mill area is limited.

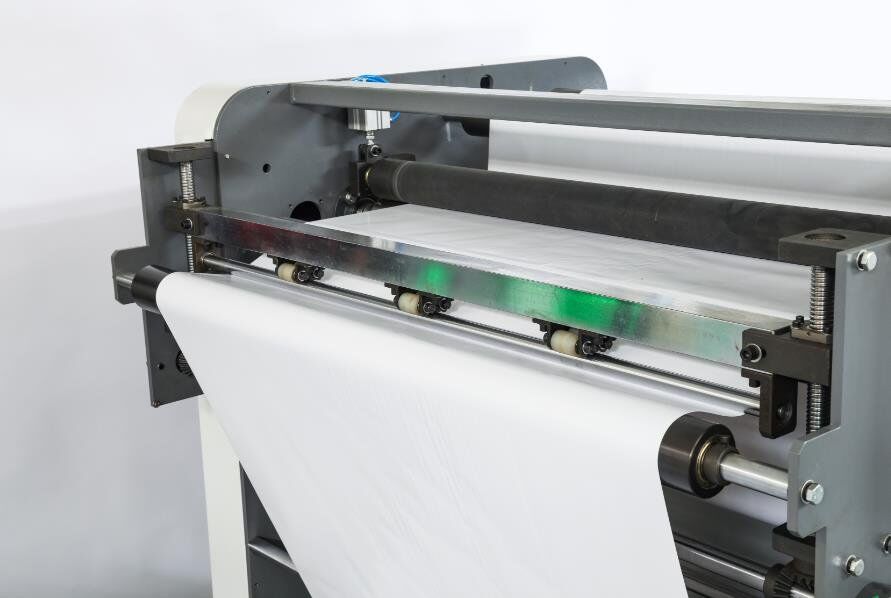

  • high-speed steel sheeting blade
  • pneumatic loading stand
  • auto sheets stacker
  • catwalk for operator
